p-Norms (Taxicab Norm, Euclidean Norm and infinity-norm)

— linear algebra, norms — 1 min read

Norms are a measure of distance. Norm is defined as follows: For p≥1p\geq1,

∣∣x∣∣p≡∣x1∣p+∣x2∣p+...+∣xn∣pp||x||_p \equiv \sqrt[p]{|x_1|^p + |x_2|^p + ... + |x_n|^p}

Taxicab Norm (1-Norm)

When p=1p=1, then the norm is said to be taxicab norm. The distance derived from this norm is called Manhattan distance.

∣∣x∣∣1≡∣x1∣+∣x2∣+...+∣xn∣||x||_1 \equiv |x_1| + |x_2| + ... + |x_n|

Euclidean Norm (2-Norm)

It is the most common notion of distance. When p=2p=2, then the norm is said to be euclidean norm.

∣∣x∣∣2≡∣x1∣2+∣x2∣2+...+∣xn∣2||x||_2 \equiv \sqrt{|x_1|^2 + |x_2|^2 + ... + |x_n|^2}

∞-norm

Infinity norm is defined as,

∣∣x∣∣∞≡max(∣x1∣,∣x2∣,...,∣xn∣)||x||_\infty \equiv max(|x_1|, |x_2|, ..., |x_n|)

Proof

∣∣x∣∣p≡∑i=1n∣xi∣p          Equation of p-norm∣∣x∣∣p≡m∑i=1n∣xi∣pm          m=max(∣xi∣)\begin{aligned} ||x||_p & \equiv \sum_{i=1}^n |x_i|^p\ \ \ \ \ \ \ \ \ \ \text{Equation of p-norm}\\ ||x||_p & \equiv m \sum_{i=1}^n \frac{|x_i|^p}{m}\ \ \ \ \ \ \ \ \ \ m=max(|x_i|)\\ \end{aligned}

As, pp approaches ∞\infty, only the term max∣xi∣m\frac{max|x_i|}{m} equals to 11, while other terms approaches to 00. Thus, ∑i=1n∣xi∣pm=1\sum_{i=1}^n \frac{|x_i|^p}{m} = 1

∴ ∣∣x∣∣∞≡max(∣xi∣)\begin{aligned} \therefore\ ||x||_\infty & \equiv max(|x_i|) \end{aligned}

Visualising norms as a unit circle

This section will show visualization when, ∣∣x∣∣p≡1||x||_p \equiv 1. Let us consider for 2 Dimensional case.

1-Norm

The equation is given as,

∣∣x∣∣1=∣x1∣+∣x2∣  ⟹  1=∣x1∣+∣x2∣\begin{aligned} & ||x||_1 = |x_1| + |x_2|\\ \implies & 1= |x_1| + |x_2|\\ \end{aligned}

Thus we get the following equations,
When x1≥0x_1\geq0 and x2≥0x_2\geq0, x2=1−x1x_2=1-x_1 [First quadrant]
When x1≤0x_1\leq0 and x2≥0x_2\geq0, x2=1+x1x_2=1+x_1 [Second quadrant]
When x1≤0x_1\leq0 and x2≤0x_2\leq0, x2=x1−1x_2=x_1-1 [Third quadrant]
When x1≥0x_1\geq0 and x2≤0x_2\leq0, x2=−x1−1x_2=-x_1-1 [Fourth quadrant]

Plotting these equations, we get,

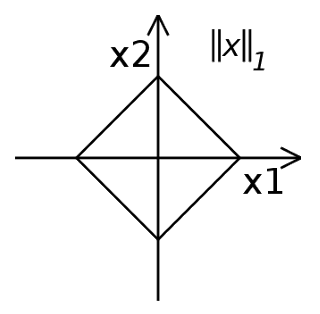

1-Norm as a unit circle

2-Norm

The equation is given as,

∣∣x∣∣2=∣x1∣2+∣x2∣2  ⟹  1=x12+x22\begin{aligned} & ||x||_2 = \sqrt{|x_1|^2 + |x_2|^2}\\ \implies & 1= x_1^2 + x_2^2\\ \end{aligned}

As this equation represents a unit circle, we get the following graph,

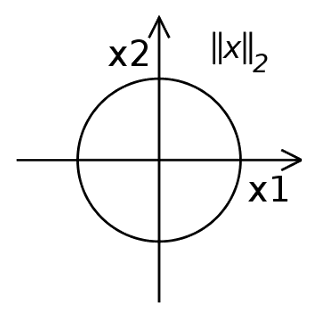

2-Norm as a unit circle

∞-norm

The equation is given as,

∣∣x∣∣∞=max(∣x1∣,∣x2∣)  ⟹  1=max(∣x1∣,∣x2∣)\begin{aligned} & ||x||_\infty = max(|x_1|, |x_2|)\\ \implies & 1 = max(|x_1|, |x_2|)\\ \end{aligned}

This gives the following graph,

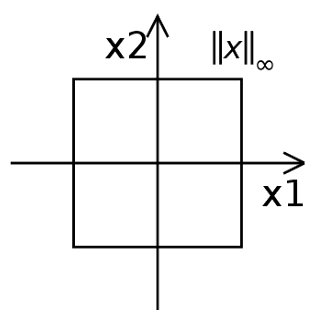

infinity-Norm as a unit circle

Substituting different values of p, these equations can be further visualised in Wolfram Mathematica Demonstaration
